Mobile: EMEA

Leading operators in the EMEA region hold substantial spectrum bands in use for LTE and 5G, which requires unique band-pairings that are supported in Skyworks’ Sky5® award winning low-power, high-performance radio front-end products. A set of highly integrated modules that support all required bands and combinations is shown in the block diagram example below.

Mobile Block Diagrams

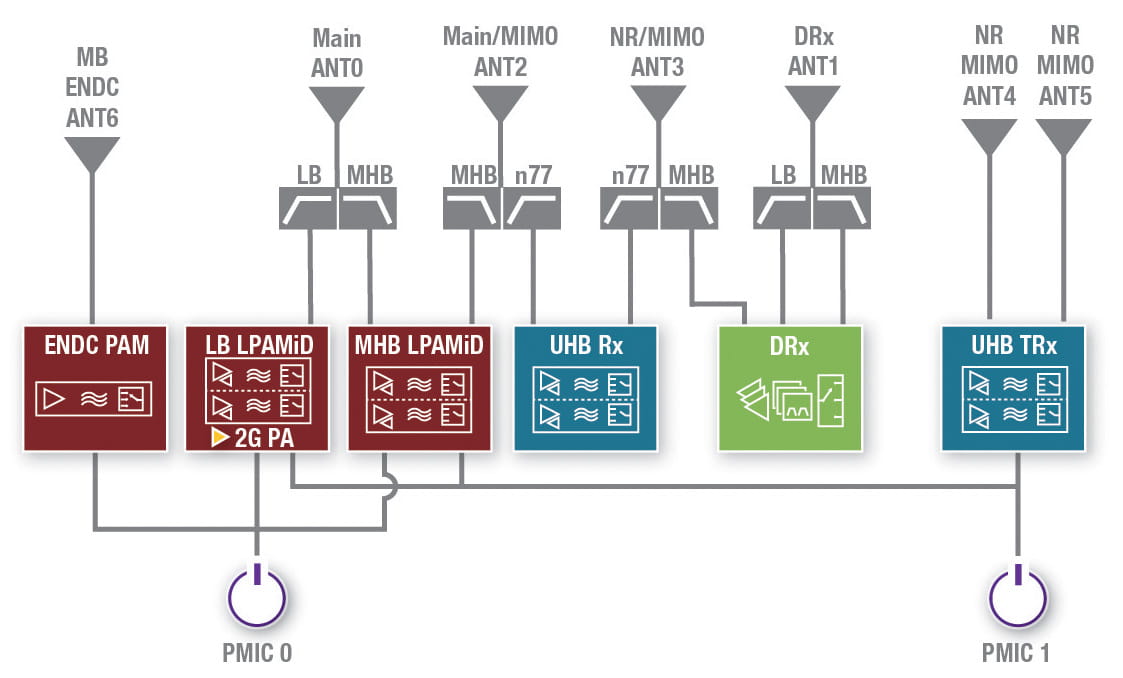

Typical EMEA Block Diagram

KEY EMEA SPECTRUM BANDS

  • LTE: 1, 3, 7, 8, 20, 28, 38, 40, 41
  • 5G: n1, n3, n7, n8, n20, n28, n38, n40, n75, n76, n78
  • LTE CA combos: 1+3, 8+20, 20+28, 1+3+7, 1+3+7+32, 1+3+7+40, 1+3+7+40+41(38)
  • EN-DC: 1/3 + n40, 1+n3, 3+n1, 1/3+n41(38), 8+20+n28, 1+3+7+n75+n78
  • 5G UL-MIMO: n78

  • Related Products
SKY58258-21 5G/5G NR Front-end Modules SKY58258-21 Sky5® Front-End Module for LTE and NR
SKY53759-11 5G/5G NR Front-end Modules Sky5® 5G NR n77 Diversity Receive Module
SKY53731-11 5G/5G NR Front-end Modules Sky5® LB / MB / HB Diversity Receive Module
