Si2164/62/60 Digital DVB-C2 TV Demodulators

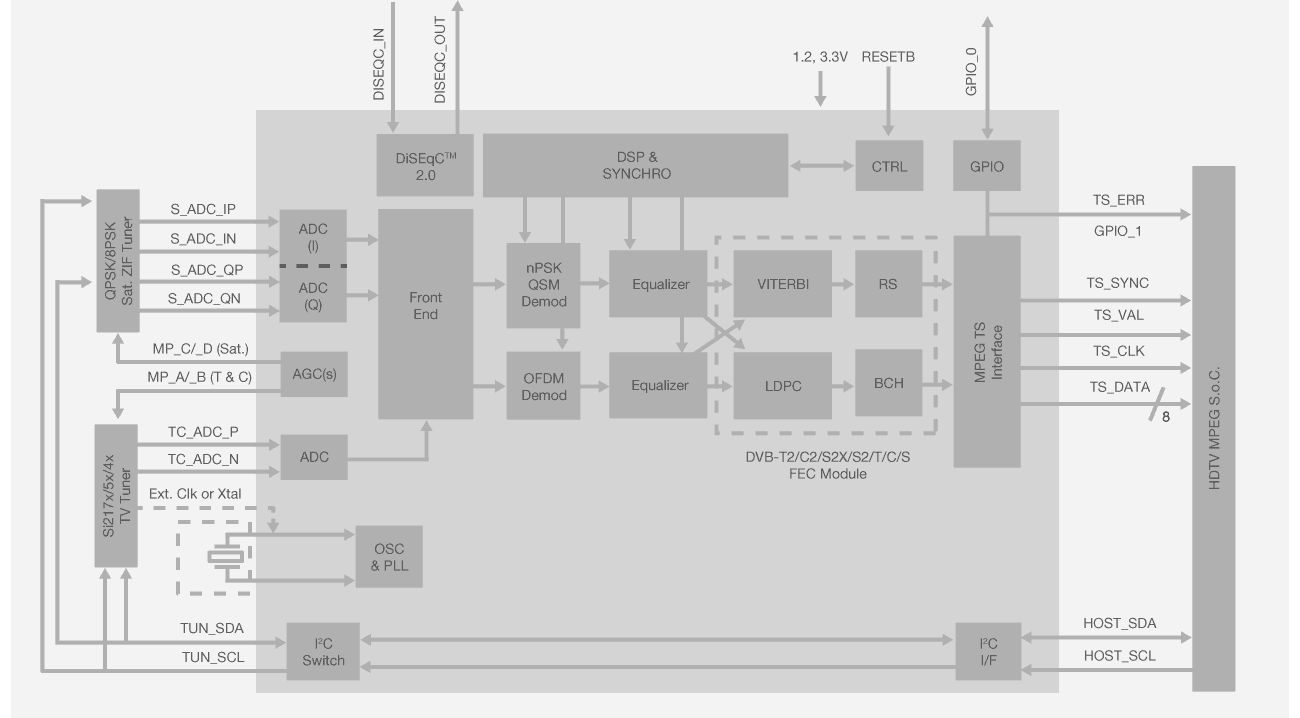

Si2164/62/60-C devices integrate digital demodulators for all first and second generation DVB video broadcasting standards, DVB-T2/C2/S2X/S2/T/C/S, DVB-T2/C2/T/C and DVB-C2/S2X/S2/T/C/S respectively, in a single advanced CMOS die. Leveraging our proven digital demodulation architecture, Si2164/62/60-C solutions achieve excellent reception performance for each media while significantly minimizing front-end design complexity, cost and power dissipation.

Our DVB-C2 demodulators accept a standard IF (36 MHz) or low-IF input (differential) and support all modes specified by the DVB-C2 standard. Main features of the DVB-C2 mode include: 4096-QAM, 6 or 8 MHz bandwidth, management of notch insertion (broadband and narrowband) and support of multiple data slices and PLPs. DVB-T2/T, DVB-S2X/S2 and DVB-C demodulator IP blocks are enhanced versions of Si2169/68/67/66 devices. DVB-T2-Lite (ETSI EN 302 755-V1.3.1) compatibility is also supported.

Si216x products offer an on-chip blind scan algorithm for DVB-S2/S2X and DVB-C/C2 standards, as well as a blind lock function. The Si216x programmable transport stream output interface provides a flexible range of output modes and is fully compatible with all MPEG decoders or conditional access modules to support any customer application.
