Extend Bluetooth Range Without Adding Design Complexity

Author: Adam Castaldo

Extending the range or reliability of a Bluetooth® system often sounds like it requires a fundamental redesign. In practice, one of the most effective ways to improve link performance—adding a front-end module (FEM)—is also one of the least disruptive changes you can make.

At a high level, a FEM augments the radio that’s already inside a Bluetooth-compatible SoC by strengthening both sides of the link. It boosts transmit power through an integrated power amplifier (PA) and improves receive sensitivity with a low-noise amplifier (LNA). The result is increased link margin, which can translate into longer range, more robust connections, and lower overall system power consumption.

One concern that sometimes comes up early in the design process is physical footprint. Adding RF capability often implies more components, more routing, and more board space. In practice, FEMs for Bluetooth applications are highly integrated and extremely compact. For example, devices like SKY66415-11 and SKY66411-11 are offered in 1.32 mm × 1.32 mm packages with 0.38 mm height, small enough to fit comfortably into space-constrained designs such as wearables or sensor nodes. Rather than expanding the RF section significantly, a FEM often replaces or consolidates discrete front-end elements into a single, tightly integrated package.

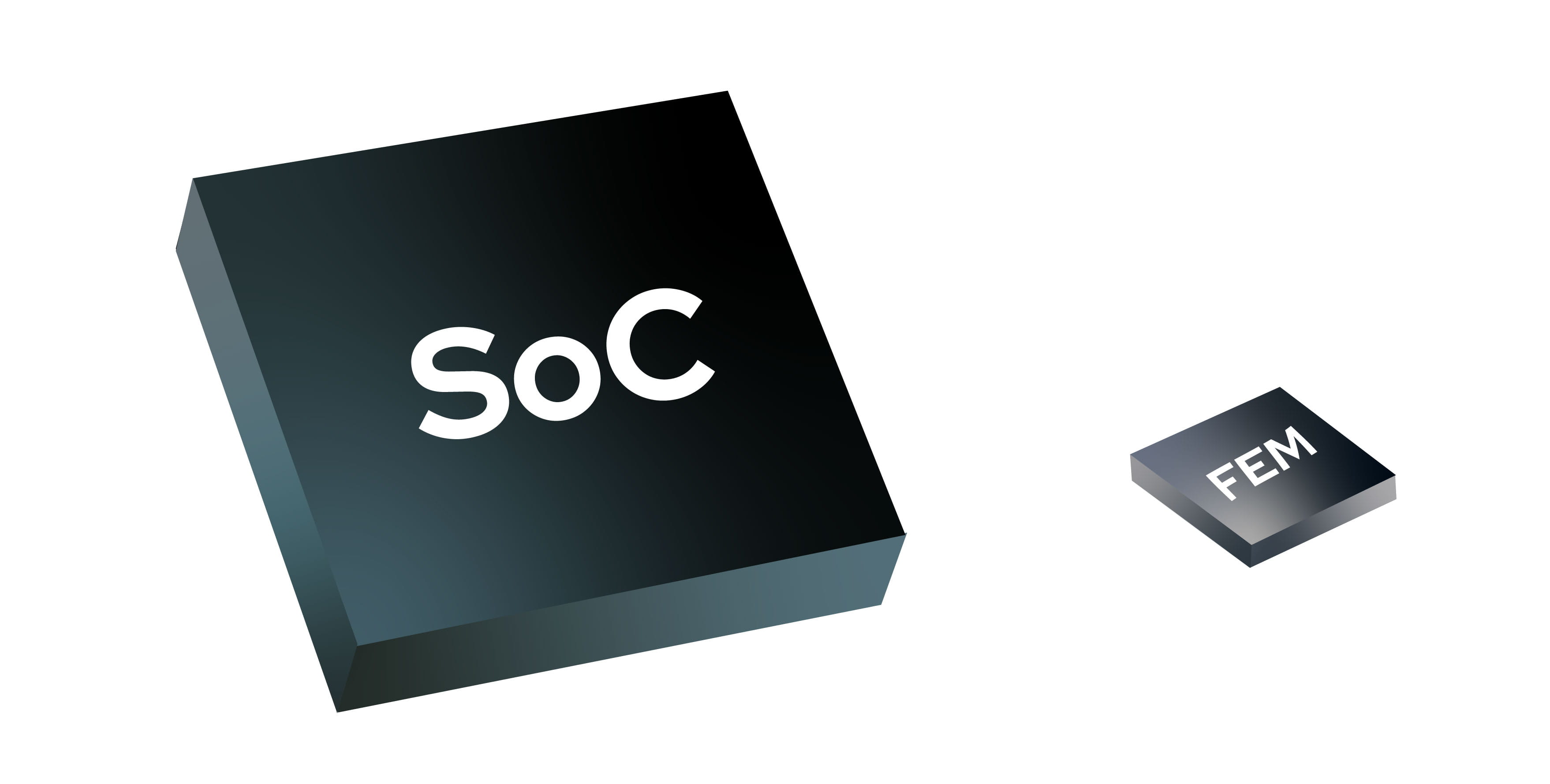

Figure 1: Size comparison of a common Bluetooth Low Energy-compatible SoC (left) and the SKY66411-11 FEM (right)

What tends to surprise designers is not what a FEM does, but how little it asks of the rest of the system. From a digital integration standpoint, attaching a FEM for Bluetooth applications is often remarkably straightforward.

A Small Digital Interface for a Meaningful RF Gain

One reason FEMs are easy to integrate is that their control interface is intentionally simple. Unlike many RF subsystems that rely on serial configuration or complex register sets, most Bluetooth-compatible FEMs can be controlled with just a few SoC GPIOs. Figure 2 highlights a typical implementation, where only two control lines are needed to manage transmit, receive, bypass, and sleep modes.

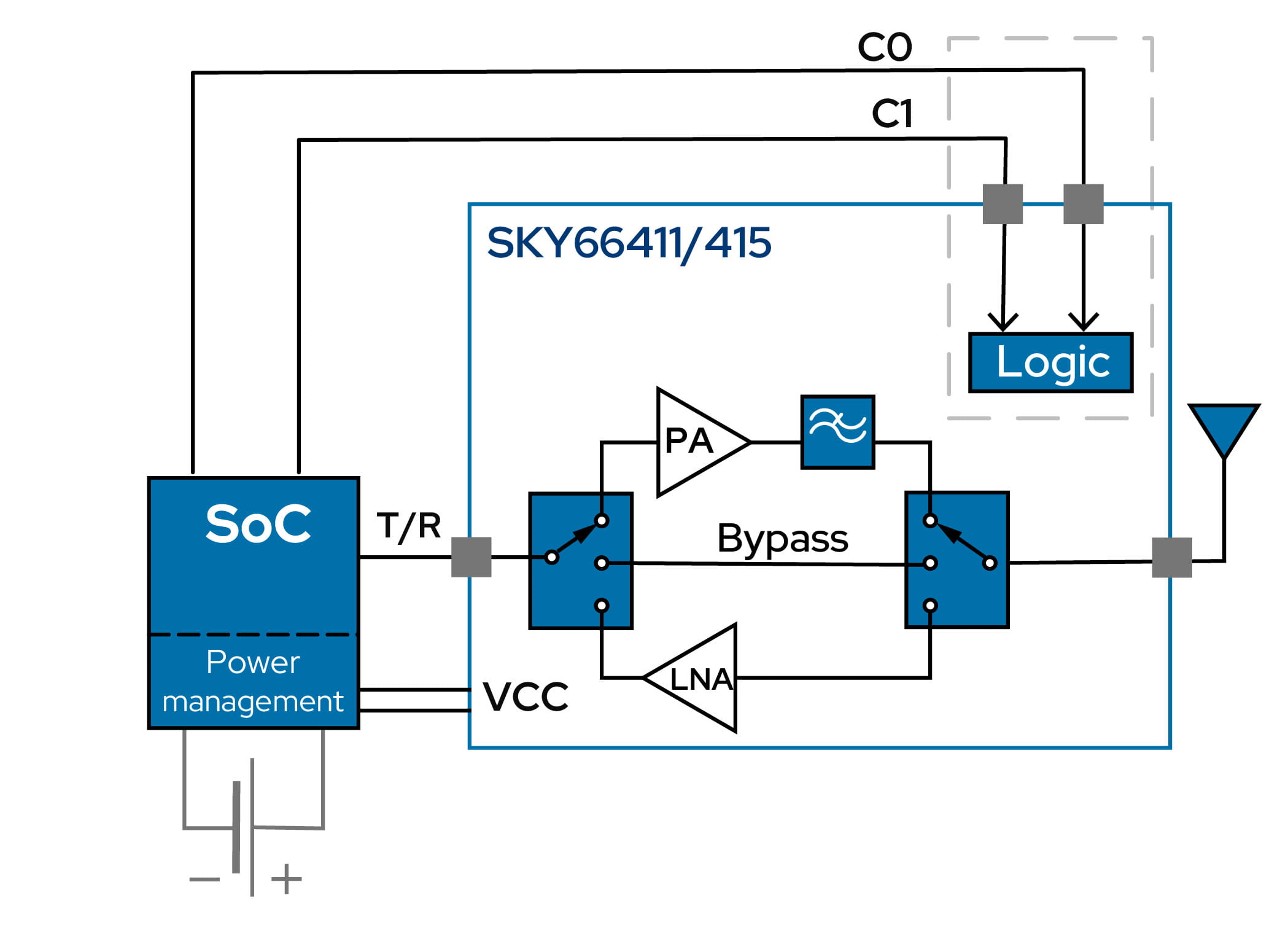

Figure 2: Digital control inputs (inside the gray dotted line) for the SKY66411-11 and SKY66415-11 FEMs.

In practice, these control lines map cleanly onto general-purpose I/O pins on the SoC. Whether you are working with a Silicon Labs EFR32 device, Texas Instruments CC2652, or Nordic nRF52- or nRF53-series part, the required signals can usually be driven directly from GPIO. In some cases, the mapping is even more streamlined: these SoCs often include hardware support to automatically assert the correct control signals during transmit and receive events.

The net effect is that the FEM does not behave like a separate subsystem that needs configuration. It behaves more like an extension of the radio—something that follows along with the state of the transceiver, controlled by a small number of logic lines.

Seamless Voltage Compatibility

Electrical compatibility between the SoC and FEM is usually straightforward, as both devices are selected to operate within the same voltage domain. Most SoCs for Bluetooth applications use supply voltages in the 1.8 V to 3.3 V range, and FEMs are designed with matching supply and logic levels. As a result, control signals can typically be connected directly, without additional interface circuitry.

In practice, designers select a FEM that aligns with the SoC’s V_CC, ensuring compatible logic thresholds and seamless integration. In some cases, FEMs like SKY66411-11, SKY66415-11, and SKY66409-11 further increase flexibility by supporting lower-voltage control interfaces (such as 1.2 V logic) even when powered from a higher supply rail. This eliminates the need for level shifting in most designs and reinforces the lightweight nature of FEM integration.

Minimal Timing Requirements

Timing coordination between the SoC and FEM is typically straightforward, as many Bluetooth-compatible SoCs include built-in GPIO hardware support to control FEM signals during transmit and receive events.

In practice, only a few scenarios require additional consideration:

Low-power designs with external regulators: FEM sleep current is already typically below 1 μA, but some designers reduce it even further by completely switching off the FEM supply. In these cases, a short power-on time (typically 1–5 microseconds, depending on the device) must be accounted for before RF activity begins.
When V_CC is always ON, the mode switching time typically remains below 1 µs.

Outside of these cases, FEM timing is handled transparently by the SoC, allowing designers to focus on overall system performance rather than control sequencing.

Where the Real Work Lives: The RF Path

Up to this point, adding a FEM can sound almost trivial—and from a digital perspective, it largely is. The more careful work lies in the RF domain.

Inserting a FEM into the signal path introduces additional components between the SoC’s radio and the antenna. Maintaining a well-matched 50-Ω environment, minimizing losses, and preserving signal integrity require attention to layout and matching networks.

This is not unique to any particular FEM or SoC; it is inherent to RF design. Trace lengths, grounding strategy, component placement, and the inclusion of optional matching components all influence performance. Fortunately, FEM and SoC vendors typically provide evaluation boards and layout resources that demonstrate proven implementations of these RF sections. While evaluation boards are often larger to accommodate connectors such as SMAs, they clearly highlight the compact RF front-end—including all required matching and bypass circuitry—that is ultimately integrated into the end design. With available design files such as Gerbers, customers can directly reuse these validated layouts as a starting point, significantly reducing risk and improving the likelihood of first-pass success.

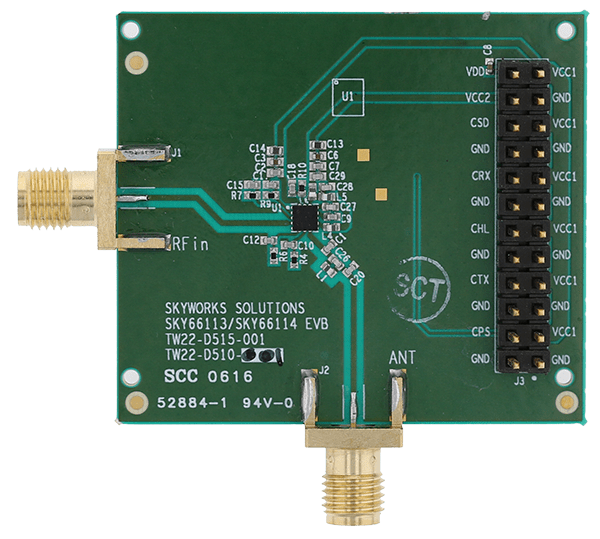

Figure 3: The SKY66114-11EK1 provides a simple blueprint for good RF performance

Following those references closely, especially for initial designs, goes a long way toward ensuring success. Once a baseline design is validated, there is room for optimization, but the first-order results are typically achievable without extensive iteration.

In other words, while the digital interface is easy by construction, the RF implementation rewards careful adherence to established practices rather than invention.

Signal integrity is inherently enhanced by the presence of the FEM. In addition to providing gain, the power amplifier and harmonic filter present in the transmit path help suppress harmonic emissions from the SoC, contributing to a cleaner transmit spectrum and improved overall RF performance.

Power Tradeoffs That Often Work in Your Favor

At first glance, adding a FEM may appear to increase power consumption. After all, a power amplifier draws additional current during transmission. In isolation, that is true. But at the system level, the effect is more nuanced. Achieving higher output power directly from the SoC often results in reduced efficiency, while operating the SoC at a lower output level and leveraging a FEM to reach the required transmit power can deliver significantly better overall efficiency.

By improving link margin, a FEM enables more reliable communication with fewer retransmissions and shorter active radio time. A stronger receive path also enhances sensitivity, allowing devices to maintain links at lower effective transmit power or reduced duty cycles. In applications where higher output power is required to extend range, devices such as the SKY66114-11 can deliver up to +22 dBm with 42% efficiency, helping to maximize link margin without significantly increasing power consumption. Together, these effects improve overall link efficiency, often offsetting—or even outweighing—the added peak current draw.

The result is not only increased range and robustness, but in many cases comparable or improved battery life.

From a design perspective, the key is to ensure that the power supply can support the FEM’s transient current demands and that proper decoupling is in place. With that foundation, the system-level benefits tend to follow naturally.

Putting It Together in Practice

A typical integration ends up being surprisingly straightforward. The RF output of the SoC routes into the FEM, the FEM output routes to the antenna, and a small number of control signals connect to GPIOs. When the radio transmits, the FEM’s transmit path is enabled; when the radio receives, the receive path is active. Most Skyworks FEMs also include a bypass mode, allowing the signal to bypass the gain stages when additional performance is not required, with mode selection controlled through the same GPIO interface.

In most designs, the SoC’s transmit output is configured to a reduced power level to properly drive the FEM input stage. This adjustment is made through standard radio configuration settings and is a normal part of integrating an external front-end, requiring no additional hardware complexity.

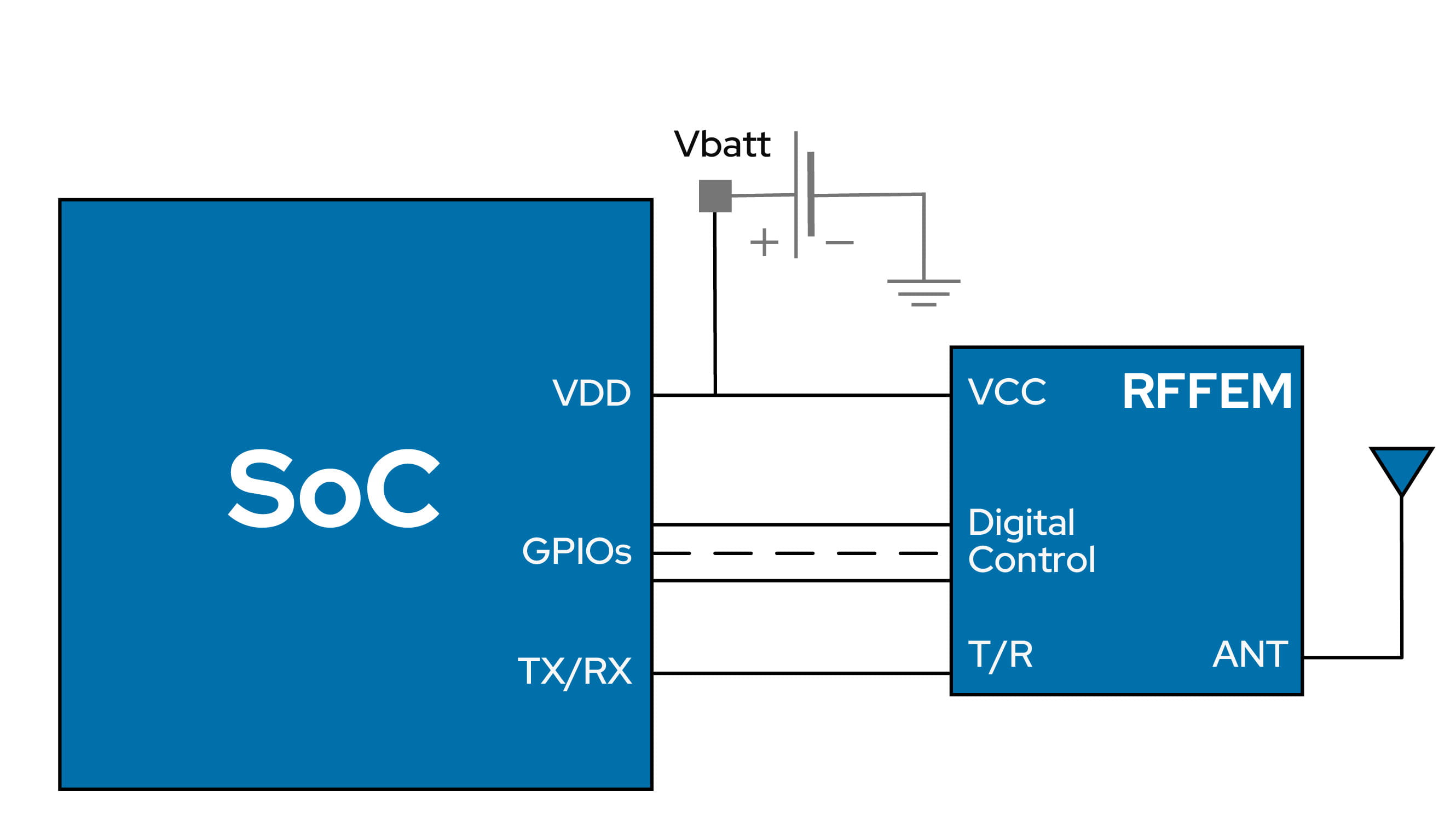

Figure 4: A typical block diagram of a Bluetooth Low Energy system with an SoC + FEM implementation

For a concrete example, consider pairing a Bluetooth-compatible SoC with a compact 2.4 GHz FEM such as the SKY66114-11 or SKY66411-11. These parts expose control pins that align well with the GPIO or dedicated FEM control features found on devices like the EFR32, CC2652, or nRF534x families. With compatible voltage levels and reference layout guidelines in hand, the integration largely reduces to correct pin mapping and careful RF routing.

There is no need for a complex digital protocol, no extensive configuration sequence, and no additional processing burden. The FEM effectively enhances the radio without fundamentally changing how it is used.

A Straightforward Path to Better Wireless Performance

Adding a FEM is one of those rare design changes that offers a meaningful performance gain without introducing comparable complexity. The control interface fits naturally into existing GPIO capabilities. Electrical compatibility is typically straightforward. Timing is often handled in hardware by the SoC itself.

The remaining effort—RF layout and power integrity—is already part of good wireless design practice, whether a FEM is present or not.

For designers looking to increase range, improve reliability, or recover margin in challenging environments, a FEM is less of a leap than it may first appear. With a small number of well-understood considerations, it becomes a practical and accessible way to extend the capabilities of an otherwise standard Bluetooth system.

Additional resources:

Use our new IoT Range Extender tool to find the right FEM to pair with your SoC
Explore Skyworks’ portfolio of FEMs for Bluetooth applications
