CLA4603-000

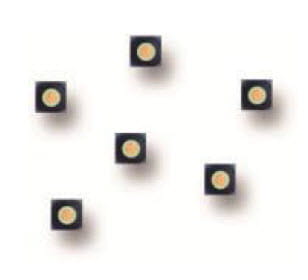

Silicon Limiter Diodes, Packaged and Bondable Chips

Skyworks CLA series of silicon limiter diodes provides passive receiver protection over a wide range of frequencies from 100 MHz to over 30 GHz. These devices use Skyworks wellestablished silicon technology resulting in high resistivity and tightly controlled base width PIN limiter diodes. Limiter circuits using these devices perform with strong limiting action and low loss.

The CLA series consists of nine individual chip designs of different intrinsic region base widths and capacitances designed to accommodate multi-stage limiter applications. The CLA4603-000 are planar designs designated for high-power and mid-range applications.

Data Sheets

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

V_B I_R = 10 µA (V) Min to Max20-45

Typ. C_J @ 0 V
(pF)0.20

Nominal I-region (µm)1.5

Max. C_J @ 6 V (pF)0.15

Typ. T_L @ 10 mA (ns)5

Max. R_S @ 10 mA (Ω)2.0

_Thermal Impedance_ Typical (°C/W)135

_Thermal Impedance_ Typ. 1 µs Pulse 0.01% Duty Cycle (°C/W) Typical0.39

Features

Established Skyworks limiter diode process
High power, mid-range, and cleanup designs
Low insertion loss: 0.1 dB @ 10 GHz
Peak power handling to +74 dBm
Ultra low spike leakage power
Tight control of I layer base width
Mesa and planar chip designs

Product Documents

Applications

Space

See all

Surveillance Systems

See all

Instrumentation

See all

Electronic Warfare

See all

Radar

See all

Communications

See all

Avionics

See all
