AS179-92LF

PHEMT GaAs IC SPDT Switch 0.02–3 GHz

The AS179-92 is an IC FET SPDT switch in a low cost miniature SC-70 6-lead plastic package. The AS179-92 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.
Read More...

Features

    • P1 dB +30 dBm Typical @ +3 V
    • IP3 43 dBm Typical @ +3 V
    • Low Insertion Loss (0.3 dB @ 0.9 GHz)
    • Low DC Power Consumption
    • Available Lead (Pb)-Free MSL-1 @ 250°C per JEDEC J-STD-020

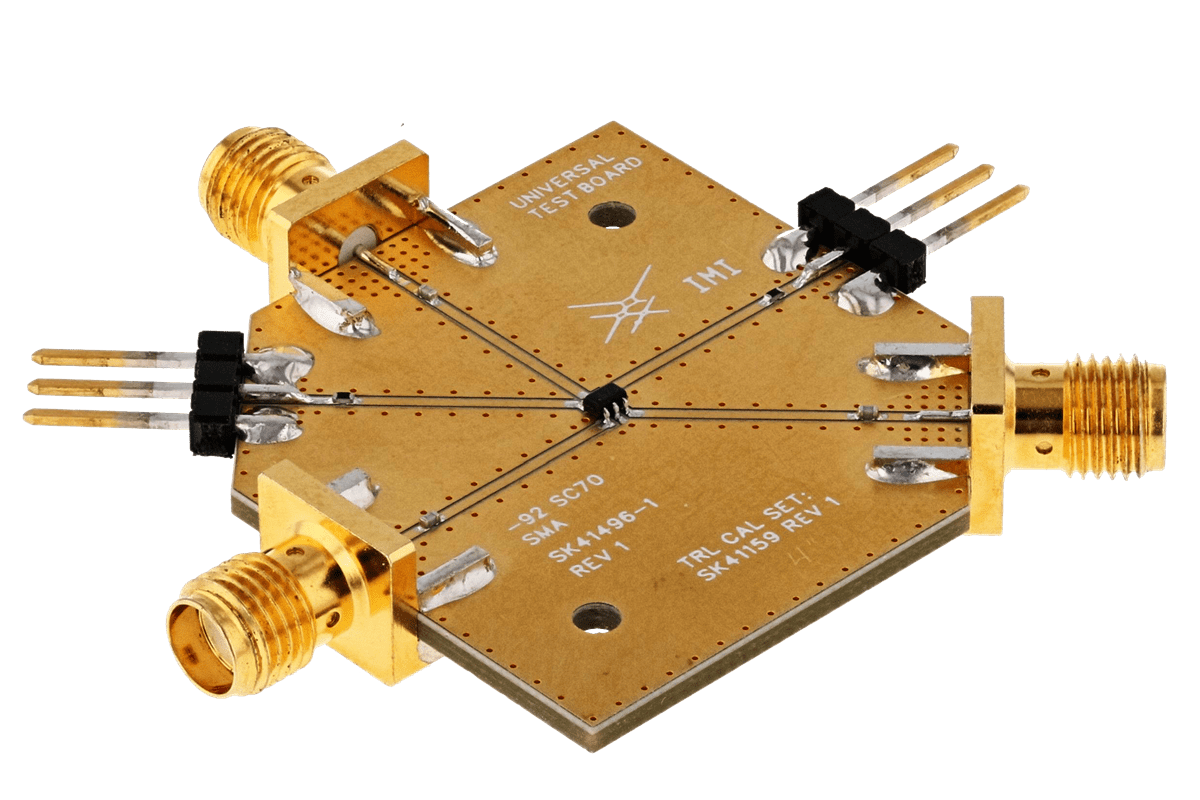

Images & Diagrams

Specifications

    • Description (Absorptive/ Reflective)
    • SPDT (R)
    • Frequency (GHz) Min.
    • 0.02
    • Frequency (GHz) Max.
    • 3
    • Typ. IL (dB)
    • 0.3-0.4
    • Typ. Isol. (dB)
    • 25-23
    • Typ. IIP3 (dBm)
    • 43
    • Typ. IP1 dB (dBm)
    • 30
    • Control Logic
    • Package
    • SC-88, 6L
    • Package (mm)
    • 2.1 x 2 x 0.95
