SKY67180-306LF

1.5 to 3.8 GHz Two-Stage, High-Gain Low-Noise Amplifier

The SKY67180-306LF is a two-stage, low-noise amplifier (LNA) with active bias and high-linearity performance. The front end of the device provides an ultra-low noise figure (NF) while the output stage provides high gain, linearity, and efficiency.

With excellent thermal performance, the SKY67180-306LF is rated for operation up to +105 °C.

The SKY67180-306LF is provided in a 4 x 4 mm, 16-pin Quad Flat No-Lead (QFN) package.
Read More...

Features

    • Ultra-low reference design NF: 0.8 dB @ 3.5 GHz
    • High gain: 31 dB (typical) @ 3.5 GHz
    • Low quiescent current: 125 mA
    • Stage 1 and 2 adjustable current
    • Small QFN (16-pin, 4 x 4 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)

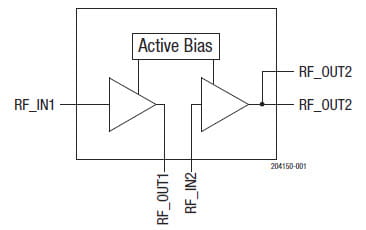

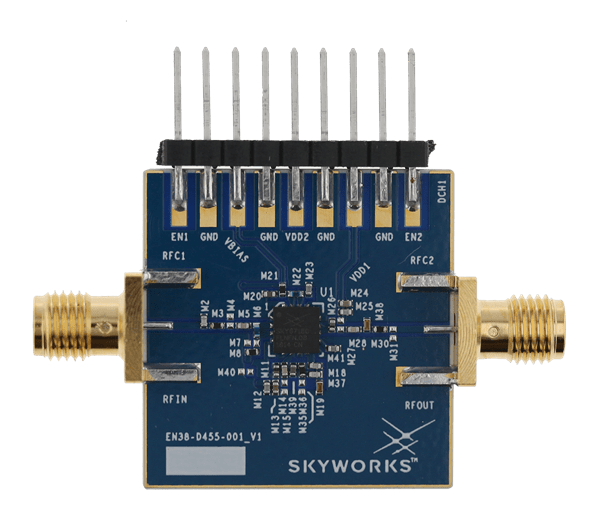

Images & Diagrams

Specifications

    • Frequency Range (GHz)
    • 1.5-3.8
    • Test Frequency (GHz)
    • 3.6
    • Gain Typ. (dB)
    • 31
    • OIP3 (dBm)
    • 34
    • VDD (V)
    • 5
    • OP1 dB (dBm)
    • 17
    • Supply Current Typ. (mA)
    • 125
    • Noise Figure Typ. (dB)
    • 0.8
    • Package
    • QFN, 16-pin
    • Package (mm)
    • 4 x 4
