Si3402-GM

Si3402-GM Class 3 15W Power Over Ethernet (PoE) PD Interface Devices

The Si3402-GM is the industry’s most highly-integrated, IEEE 802.3 at Type 1-compliant, PoE PD interface and pulse-width-modulated (PWM) switching regulator. By setting a new bar for device integration, lowest overall BOM cost, efficiency and reliability, the Si3402-GM enables designers to easily add PoE functionality to their Ethernet products. When included in the design of a PoE-enabled system, such as a wireless access point or VoIP phone, the Si3402-GM converts the high voltage (typically ±48 V) supplied over Ethernet copper UTP cabling into a regulated, low-voltage dc supply. In addition, the Si3402-GM combines all the required IEEE 802.3 at Type 1 detection, classification and hot swap interfaces with a complete, high efficiency, PWM switching regulator.

Read More...

Specifications

Synchronous FET Driver false
Sleep Mode
Temperature Range Min (°C) -40
Maximum Output Power (W) 15
Aux Adapter Support false
Package Type QFN20
Switching Frequency Range (kHz) 350
Transformer Bias Winding Input false
Switching Frequency Max (kHz) 350
Package Size (mm) 5x5
Description 802.3af PoE PD Interface with dc-dc
IEEE Specification 802.3at Type 1
Efficiency (%) 78
Temperature Range Max (°C) 85
Auto MPS Support false
DC DC true
Synchronous FET Driver false
Sleep Mode
Temperature Range Min (°C) -40
Maximum Output Power (W) 15
Aux Adapter Support false
Package Type QFN20
Switching Frequency Range (kHz) 350
Transformer Bias Winding Input false
Switching Frequency Max (kHz) 350
Package Size (mm) 5x5
Description 802.3af PoE PD Interface with dc-dc
IEEE Specification 802.3at Type 1
Efficiency (%) 78
Temperature Range Max (°C) 85
Auto MPS Support false
DC DC true

PRODUCT DOCUMENTS

QUALITY AND PACKAGING

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.


Certificate of Conformance
Product

si3402b-evb

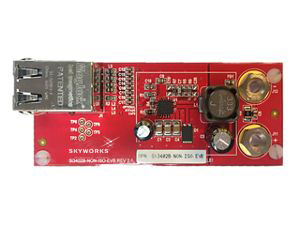

Si3402B PoE Powered Device Non-Isolated Evaluation Kit

PoE PD evaluation kits contain an evaluation board with RJ-45 jacks to allow direct connection into a PoE-enabled system, as well as power supply connectors to enable monitoring of the Si3402B's regulated dc output. EVBs are configured by default to generate a 5V output. The EVB Users Guides provide a tabular summary of the BOM changes required to configure the Si3402B to generate 3.3V, 9V and 12V output supplies.

MSRP $95.00

Product

si3402biso-evb

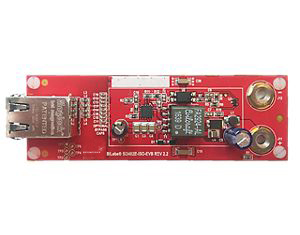

Si3402B PoE Powered Device Isolated Evaluation Kit

PoE PD evaluation kits contain an evaluation board with RJ-45 jacks to allow direct connection into a PoE-enabled system, as well as power supply connectors to enable monitoring of the Si3402B’s regulated dc output. EVBs are configured by default to generate a 5V output. The EVB Users Guides provide a tabular summary of the BOM changes required to configure the Si3402B to generate 3.3V, 9V and 12V output supplies.

MSRP $95.00
