800 to 900 MHz High-Efficiency 4 W Power AmplifierSKY66295-11 is a high-efficiency fully input/output matched power amplifier (PA) with high gain and linearity. The compact 5 x 5 mm PA is designed for FDD and TDD 2G/3G/4G LTE small cell base stations operating from 800 to 900 MHz. The active biasing circuitry is integrated to compensate PA performance over temperature, voltage, and process variation.
The SKY66295-11 is part of a high efficiency, pin-to-pin compatible PA family supporting all 3GPP bands.
- High efficiency: PAE = 42% @ +28 dBm
- High linearity: +28 dBm with < -50 dBc linearized ACLR (20 MHz LTE, 8.5 dB PAR signal)
- High gain: 34 dB
- Excellent input and output return loss: to 50 system
- Integrated active bias: performance compensated over temp
- Integrated enable On/Off function: PAEN = 1.7 to 2.5 V
- Single supply voltage: 5.0 V
- Pin-to-pin compatible PA family supporting all 3GPP bands
- Compact (16-pin, 5 x 5 x 1.3 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

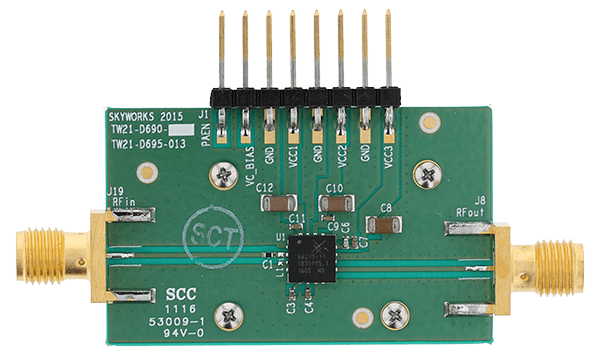

Images & Diagrams
- Frequency Range (GHz)
- 0.8 – 0.9
- Test Frequency (GHz)
- Gain Typ. (dB)
- OIP3 (dBm)
- P1 dB (dBm)
- Power Added Efficiency (%)
- Linear Output Power (dBm)
- VCC (V)
- Quiescent Current Typ. (mA)
- MCM, 16-pin
- Package (mm)
- 5 x 5 x 1.3
- High Efficiency Power Amplifiers for Small Cell Applications
