Features
- Ultra-low Evaluation Board NF of 0.23 dB @ 849 MHz
- High OIP3 performance: +39 dBm
- Adjustable supply current from 20 to 100 mA
- Flexible bias voltage: 3 to 5 V
- Temperature and process-stable active bias
- Miniature DFN (8-pin, 2 x 2 mm) package (MSL1 @ 260°C per JEDEC J-STD-020)

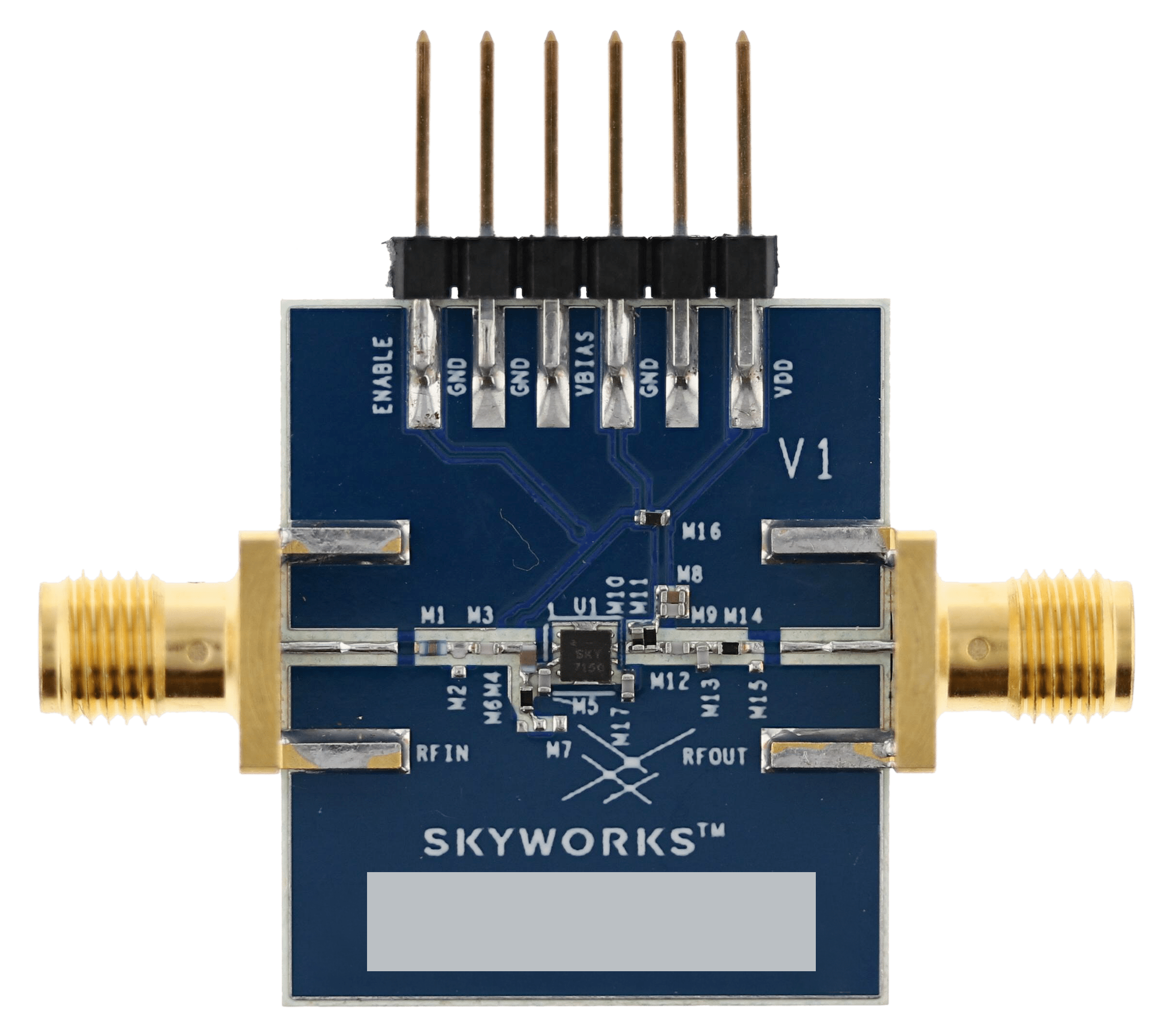

Images & Diagrams
Specifications
-
- Frequency Range (GHz)
- 0.3-2.2
-
- Test Frequency (GHz)
- 0.45
0.849
1.90
-
- Gain Typ. (dB)
- 23.0
20.5
14.5
-
- OIP3 (dBm)
- 36
39
36.5
-
- VDD (V)
- 5
5
5
-
- OP1 dB (dBm)
- 19
21
18
-
- Supply Current Typ. (mA)
- 82
82
82
-
- Noise Figure Typ. (dB)
- 0.45
0.23
0.38
-
- Package
- DFN, 8-pin
-
- Package (mm)
- 2 x 2 x 0.75
