SKY66423-11
860 to 930 MHz RF Front-End Module
The SKY66423-11 is a high performance, highly integrated RF front-end module designed for LPWAN – supporting LoRa®, SigFox and other unlicensed band technologies – as well as high-power Industrial, Scientific, Medical (ISM) applications operating in the 860-930 MHz frequency range.The SKY66423-11 is designed for ease of use and maximum flexibility with fully matched 50 Ω TX and RX inputs and antenna outputs, and digital controls compatible with 1.6 to 3.6 V CMOS levels.
The RF blocks operate over a wide supply voltage range from 2.0 to 4.8 V allowing the SKY66423-11 to be used in battery powered applications over a wide spectrum of the battery discharge curve.
The SKY66423-11 is packaged in a 16-pin, 3.0 x 3.0 x 0.75 mm Multi-Chip Module (MCM) package.
Features
- Integrated PA with +27 dBm output power
- Integrated LNA with noise figure of 1.5 dB, typical
- Alternate TX input pin simplifies connection to any SoC
- Transmit bypass path with low loss: < 1.5 dB
- Single-ended 50 Ω transmit/receive RF interface
- Fast turn-on/turn-off time: <4 μs Rx mode and <2 μs Tx mode
- Supply voltage: 2.0 to 4.8 V
- Sleep mode current: < 1 μA
- MCM (16-pin, 3.0 x 3.0 x 0.75 mm) NiPdAu plated package
(MSL3, 260 °C per JEDEC J-STD-020)

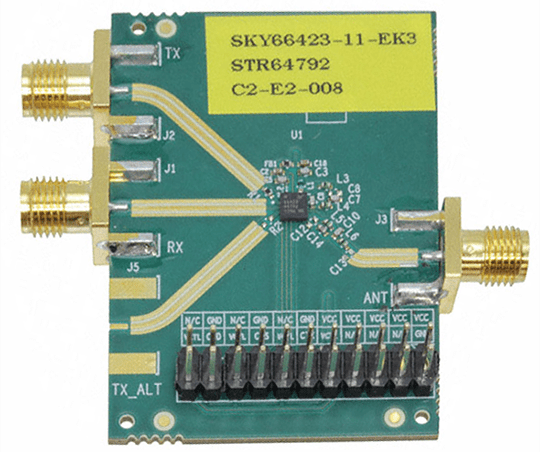

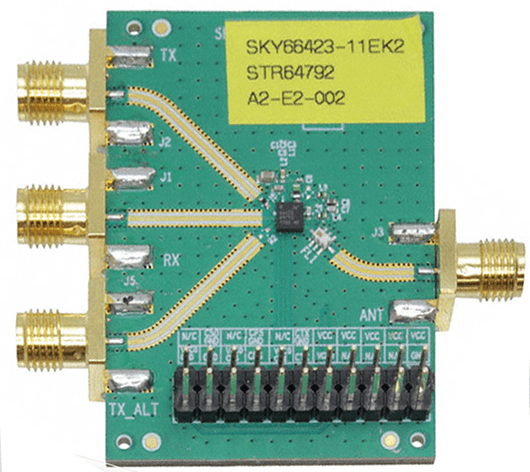

Images & Diagrams
Specifications
-
- RF Frequency (MHz)
- 860-930
-
- Description
-
- Rx Insertion Loss (dB) Typ.
-
- 802.11 WLAN Standard
-
- Rx Gain (dB) Typ.
-
- Tx Gain (dB)
-
- Rx NF (dB) Typ.
-
- Saturated Output Power (dBm) Typ.
-
- Supply Voltage (V)
- 2.0-4.8
-
- Package
- MCM, 16-pin
-
- Package (mm)
- 3 x 3 x 0.75
