Product

si890pwr-evb

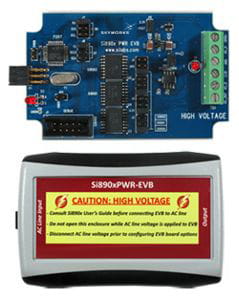

Si890x Isolated Analog and ADC Evaluation Kit

The Si890xPWR-KIT demonstrates 50/60 Hz ac line voltage and current measurements. This EVB is housed in a plastic case with recessed connectors to protect against user electrical shock. The Si890x isolated AC mains monitor accepts a 110 or 220 vac input, and supports load currents up to 25 A (max). MSRP $163.00.

Please note: SI890PWR-EVB is being discontinued and is not recommended for new designs. The suggested replacement is SI8920ISO-KIT.

Support

Tools and Software

  • Isolation Bootstrap Calculator
  • The web-based bootstrap calculator helps you determine the required CB recharge current at MAX and MIN duty cycle, and provides the information required to determine the best fit bootstrap module.
  • Isolation Power Calculator
  • The Isolator Power Consumption Calculator web-based utility allows you to define basic information about your isolation set-up, and find out what your power budget will be. Simply choose the settings that match your design, then click "Get Results" to get detailed power and current data.Note: The power calculator is provided as a guideline only. The utility is not meant to be exhaustive nor provide a power calculation for every possible scenario. Launch the utility with a live internet connection to synchronize the data.
