Si53352A-01AM

Si53352A-01AM 1:2 Clock Buffer Level/Translat

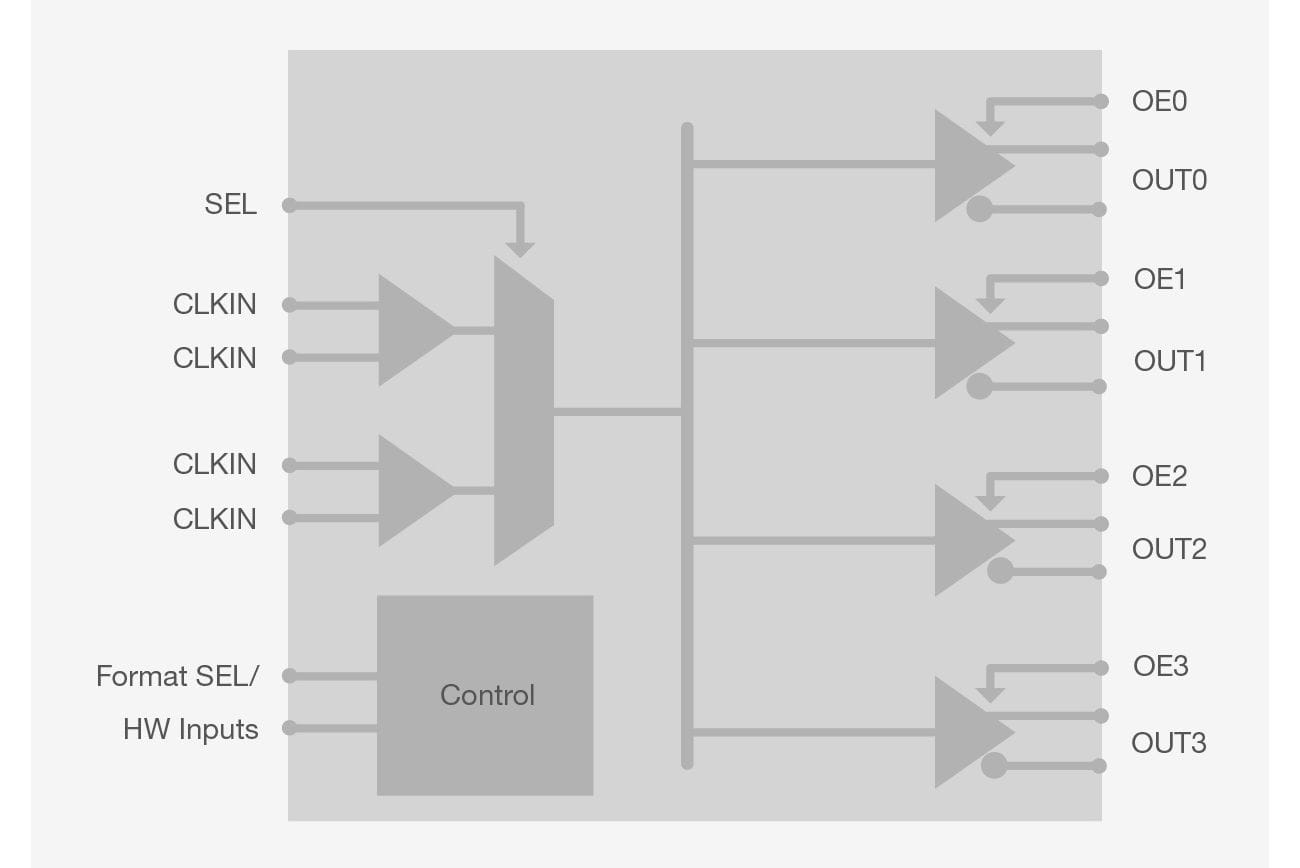

The Si53352A-01AM is a universal 1 : 2 low jitter clock buffer/level translator. Users can fully customize the input/output format and voltages using ClockBuilder Pro, or choose the fixed-function alternative that features hardware input pins to select the input/output clock format level (LVDS, LVPECL, HCSL, LVCMOS). The Si53352A-01AM utilizes Skyworks' advanced CMOS technology to fanout ten copies of a 10 to 333.33 MHz input reference clock, with guaranteed low additive jitter, low skew and low propagation delay variability. The Si53352A-01AM features minimal cross-talk and provides superior supply noise rejection, simplifying low jitter clock distribution in noisy environments. Independent core and output bank supply pins provide integrated level translation without the need for external circuitry.

Read More...

Specifications

Temperature Range Min (°C) -40
Package Type QFN32
OPN Si53352A-D01-AM
Line Impedance Match 0
Universal Buffers false
Number of Inputs 1
Number of Outputs 2
Frequency Max 250
Frequency Min (MHz) 10
Package Size (mm) 5x5
Description 2-output Clock Buffer Auto Grade
Ouput Format(s) HCSL; LVCMOS; LVDS; LVPECL
VDDO (V) 1.8; 2.5; 3.3
Additive Jitter (ps RMS) 0.1
VDD (V) 1.8; 2.5; 3.3
PCIe Compliant false
Feedback Path false
Output Format Categories Differential; Single-Ended
PCIe Performance 1; 2; 3; 4; 5
Single Ended Input false
LVCMOS Buffers false
Differential Buffers false
Temperature Range Max (°C) 105
Dual false
Zero Delay Buffers false
Temperature Range Min (°C) -40
Package Type QFN32
OPN Si53352A-D01-AM
Line Impedance Match 0
Universal Buffers false
Number of Inputs 1
Number of Outputs 2
Frequency Max 250
Frequency Min (MHz) 10
Package Size (mm) 5x5
Description 2-output Clock Buffer Auto Grade
Ouput Format(s) HCSL; LVCMOS; LVDS; LVPECL
VDDO (V) 1.8; 2.5; 3.3
Additive Jitter (ps RMS) 0.1
VDD (V) 1.8; 2.5; 3.3
PCIe Compliant false
Feedback Path false
Output Format Categories Differential; Single-Ended
PCIe Performance 1; 2; 3; 4; 5
Single Ended Input false
LVCMOS Buffers false
Differential Buffers false
Temperature Range Max (°C) 105
Dual false
Zero Delay Buffers false
