Si52254A-01AM Automotive Grade 4-Output PCIe Gen1/2/3/4/5 Clock Generator

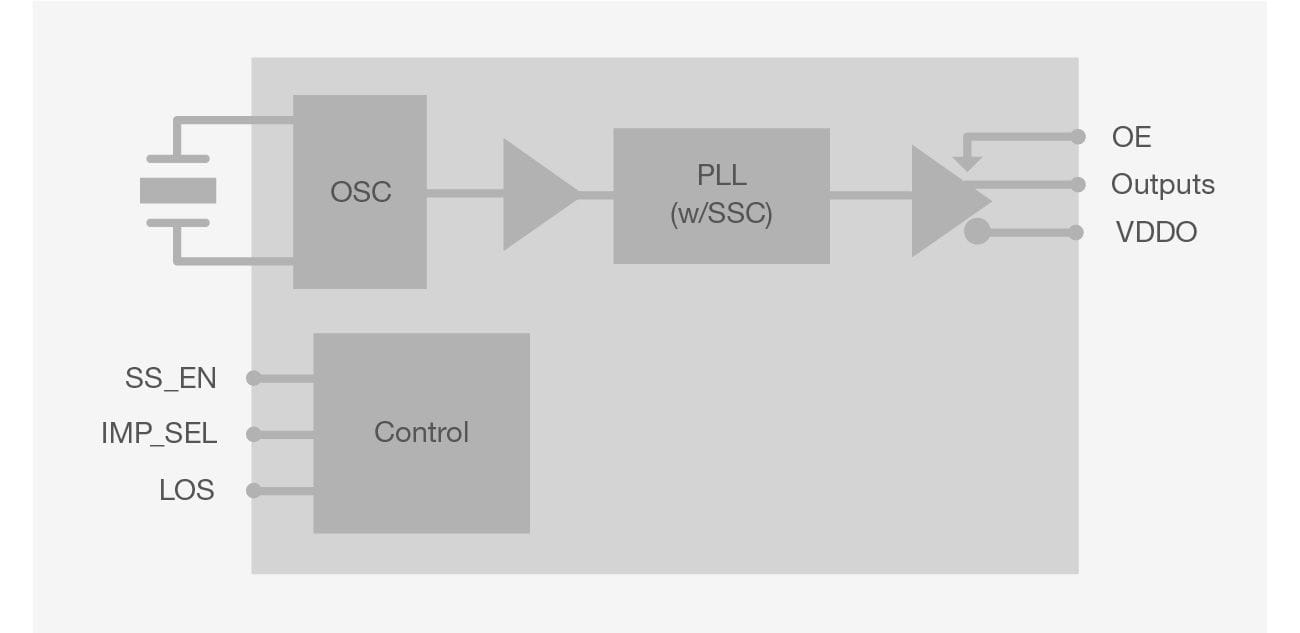

The Si52254A-01AM Automotive Grade2 (-40 to +105 °C) 4 -output PCIe Gen1/2/3/4/5 Clock Generator provides industry-leading jitter performance and integration. Capable of supporting both 85 and 100 impedance, Si52254A-01AM features fully integrated HCSL output drivers, minimizing power consumption and external termination resistors. Si52254A-01AM is ideally suited for automotive infotainment, ADAS sensor and automated driving platform solutions.

Read More...

Specifications

Loop Bandwidth Max (MHz)
Temperature Range Min (°C) -40
Package Type QFN32
OPN Si52254A-D01-AM
Line Impedance Match 100
Clock Generators true
Jitter Attenuating Clocks false
Number of Outputs 4
Intel x86 Clocks false
Real Time Clock false
Package Size (mm) 5x5
Description 4-Output PCIe Clock Generator Auto Grade
Frequency Reference Crystal
4G/LTE Wireless Clocks false
56G SerDes false
Ouput Format(s) HCSL
VDDO (V) 1.8; 2.5; 3.3
VDD (V) 1.8; 2.5; 3.3
PCI Express true
Phase Jitter (ps RMS) 0.04
Spread Spectrum true
Synchronous Ethernet/1588 false
DSPLLs 0
Reference Inputs 1
Xtal Input Frequency 25MHz
Output Format Categories Differential
PCIe Performance Gen1/2/3/4/5
Standards Compliance AECQ-100
Output Frequency Min 100
Embedded Xtal true
Loop Bandwidth Min (MHz)
Temperature Range Max (°C) 105
Output Frequency Max 100
Loop Bandwidth Max (MHz)
Temperature Range Min (°C) -40
Package Type QFN32
OPN Si52254A-D01-AM
Line Impedance Match 100
Clock Generators true
Jitter Attenuating Clocks false
Number of Outputs 4
Intel x86 Clocks false
Real Time Clock false
Package Size (mm) 5x5
Description 4-Output PCIe Clock Generator Auto Grade
Frequency Reference Crystal
4G/LTE Wireless Clocks false
56G SerDes false
Ouput Format(s) HCSL
VDDO (V) 1.8; 2.5; 3.3
VDD (V) 1.8; 2.5; 3.3
PCI Express true
Phase Jitter (ps RMS) 0.04
Spread Spectrum true
Synchronous Ethernet/1588 false
DSPLLs 0
Reference Inputs 1
Xtal Input Frequency 25MHz
Output Format Categories Differential
PCIe Performance Gen1/2/3/4/5
Standards Compliance AECQ-100
Output Frequency Min 100
Embedded Xtal true
Loop Bandwidth Min (MHz)
Temperature Range Max (°C) 105
Output Frequency Max 100

Product Documents

Use the dropdown menu to see all available documents.

Quality and Packaging

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.


Certificate of Conformance
Product

si52258-a-evb

Si5225x Automotive Grade PCIe Gen 1/2/3/4/5 Clock Generator Evaluation Kit

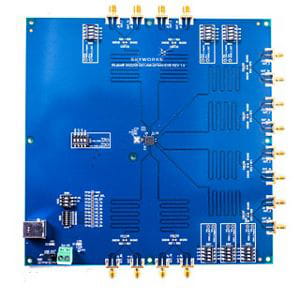

The Si52258-A-EVB evaluation board allows users to measure jitter performance for PCIe Gen1/2/3/4/5, power consumption, and signal integrity. The evaluation board features jumpers and SMA connectors for easy static configuration of the control inputs as well as providing a port of external test equipment access.
