Si5332A-GM1 Low Jitter Clock Generator with 6 Outputs and Integer and Fractional Frequency Synthesis Modes

The Si5332A-GM1 any-frequency clock generator provides the highest level of integration available, enabling complete clock tree consolidation in 10/25/40/100G data center communications and industrial applications. With an output frequency range of 5 - 333.33, the device features both MultiSynth fractional as well as integer dividers, high speed integer dividers.  jitter performance of 0.190ps TYP, low power consumption and has 6 outputs. The Si5332A-GM1 also includes up to 5 user-defined hardware input pins that can be assigned as output enable for one or more outputs, frequency control, spread spectrum enablement, or input reference selection. Si5332A-GM1 can be quickly and easily configured using ClockBuilder Pro software, offering both factory pre-programmed as well as in-system programming options.

Read More...

Specifications

Loop Bandwidth Min (Hz)
Temperature Range Min (°C) -40
Input Frequency 10
Package Type QFN32
Control I2C/Pin
Line Impedance Match 0
Clock Generators true
Jitter Attenuating Clocks false
Number of Outputs 6
Input Frequency Max (MHz) 250
Intel x86 Clocks false
Package Size (mm) 5x5
Description Any-Freq Low Jitter Clock Gen
Frequency Reference
4G/LTE Wireless Clocks false
56G SerDes false
Ouput Format(s) LVPECL; LVDS; LVCMOS; HCSL
VDDO (V) 1.8; 2.5; 3.3
VDD (V) 1.8; 2.5; 3.3
Jitter Recommended Range (fs) <
Phase Jitter (ps RMS) 0.190
PCI Express true
Spread Spectrum true
Synchronous Ethernet/1588 false
PLLs No
DSPLLs 0
Reference Inputs 2
Output Frequency 5
Embedded Xtal false
Loop Bandwidth Max (Hz)
Temperature Range Max (°C) 85
Output Frequency Max 333.33
Loop Bandwidth Min (Hz)
Temperature Range Min (°C) -40
Input Frequency 10
Package Type QFN32
Control I2C/Pin
Line Impedance Match 0
Clock Generators true
Jitter Attenuating Clocks false
Number of Outputs 6
Input Frequency Max (MHz) 250
Intel x86 Clocks false
Package Size (mm) 5x5
Description Any-Freq Low Jitter Clock Gen
Frequency Reference
4G/LTE Wireless Clocks false
56G SerDes false
Ouput Format(s) LVPECL; LVDS; LVCMOS; HCSL
VDDO (V) 1.8; 2.5; 3.3
VDD (V) 1.8; 2.5; 3.3
Jitter Recommended Range (fs) <
Phase Jitter (ps RMS) 0.190
PCI Express true
Spread Spectrum true
Synchronous Ethernet/1588 false
PLLs No
DSPLLs 0
Reference Inputs 2
Output Frequency 5
Embedded Xtal false
Loop Bandwidth Max (Hz)
Temperature Range Max (°C) 85
Output Frequency Max 333.33

Images & Diagrams

PRODUCT DOCUMENTS

QUALITY AND PACKAGING

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.


Certificate of Conformance
Product

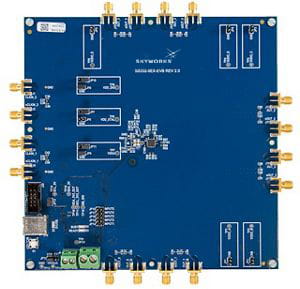

si5332-6ex-evb
