1.8 to 3.0 GHz 50 W Compact High-Power SPDT Switch with Integrated DriverRead More...
- Data Sheets
- SKY12241-492LF: 1.8 to 3.0 GHz 50 W Compact High-Power SPDT Switch with Integrated Driver
- Last Time Buy
- LTB10197: Various DAS parts (2020-10-14) (SE5003L2-R, SE5003L1-R, SE5008L-R, SKY85605-11, SKY12213-478LF, SKY12255-708LF,SKY12248-492LF, SKY12241-492LF, SKY12245-492LF, SKY12407-321LF, None, SKY19223-001, SKY19243-686LF, SKY85602-11, SKY85605-11, SKY85775-11, SKY85717-21, SKY90007-374LF, SKY65405-21, SKYC895LF, SKY13330-397LF, SKYC896LF, SKY13416-485LF, SMV1206-001LF, SMV2026-079LF, SMV1222-001LF)
- Compact, integrated high-power switch with driver circuit
- Small PCB footprint with minimal external components
- Requires only a single +5 V DC supply, and a 0 to 3 V logic control
- Low TX/RX insertion loss: 0.29/0.52 dB @ 2.6 GHz
- High TX to RX isolation: 51 dB @ 2.6 GHz
- Low DC power consumption: <100 mA in TX or RX mode
- Small QFN (20-pin, 5 x 5 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)

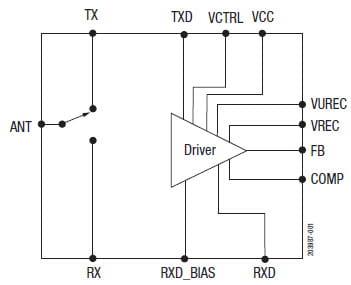

Images & Diagrams
- Description (Absorptive/ Reflective)
- SPDT (R)
- Frequency (GHz) Min.
- Frequency (GHz) Max.
- Typ. Isol. (dB)
- Ant to TX = 17
Ant to RX = 42
TX to RX = 47
- Typ. IL (dB)
- Ant to TX = 0.25
Ant to RX = 0.55
- Typ. IIP3 (dBm)
- Typ. IP1 dB (dBm)
- Max. TX Power (W)
- Control Logic
- 0/3 (V)
- QFN, 20L
- Package (mm)
- 5 x 5 x 1.5
