Timing - DSPLLsim Precision Clock EVB Software

CUSTOMIZED CLOCKING HAS NEVER BEEN EASIER

The DSPLLsim Precision Clock EVB Software is designed to simplify clock tree design and device configuration, and control the evaluation board. This software solution is provided in PC/Windows executable format to support Si531x/2x/6x or Si5374/5/6. There is a unique download for each product family. The software documentation includes installation instructions and a user guide.

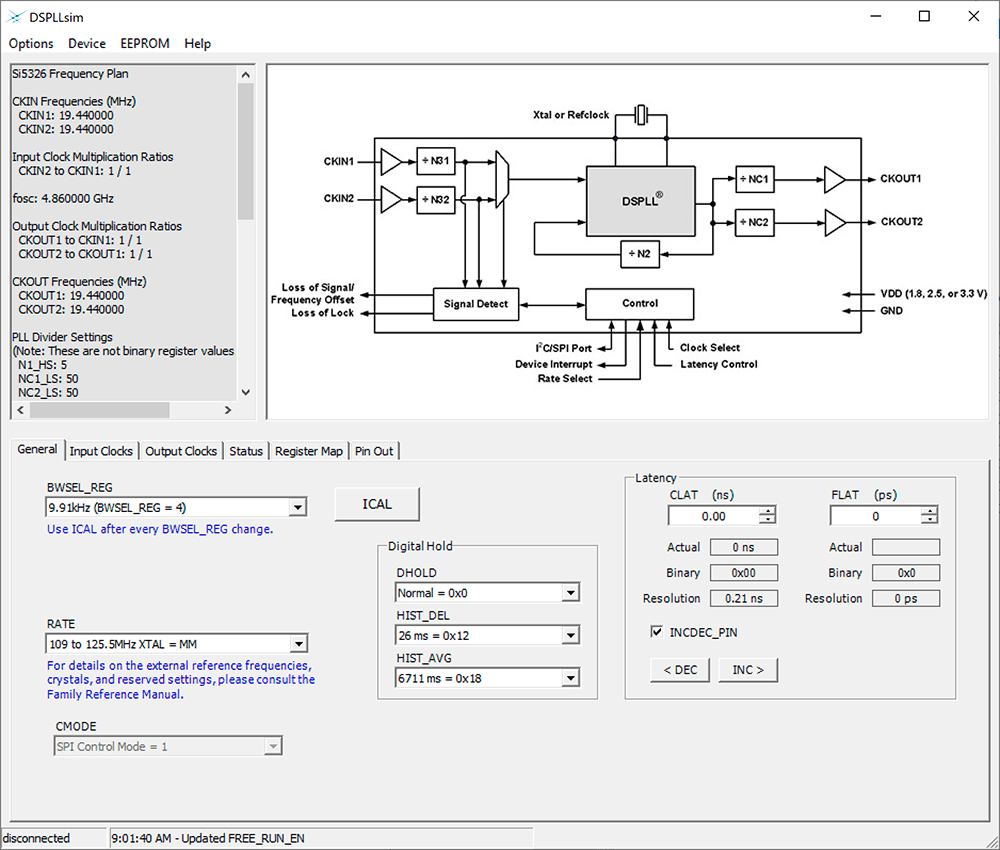

DSPLLSim software screen shot
  • DSPLLsim Precision Clock EVB Software

Downloads

Software DSPLLsim Precision Clock EVB Software for Si531x/2x/6x PrecisionClock_EVBSoftware.zip
Release Notes DSPLLsim Precision Clock EVB Software for Si531x/2x/6x – README release_notes_dspllsim.txt
Software DSPLLsim Precision Clock EVB Software for Si5374/5/6 Si537xEVBSoftwareInstall.zip
Release Notes DSPLLsim Precision Clock EVB Software for Si5374/5/6 – README release_notes_si537xdspllsim.txt
White Paper Optimizing Clock Synthesis in Small Cells and Heterogeneous Networks with Next Generation DSPLL Technology Optimizing-Clock-Synthesis-in-Small-Cells-and-Heterogeneous-Networks.pdf
