2.4 GHz ZigBee®/Thread/Bluetooth® Front-End ModuleThe SKY66403-11 is a high-performance, fully integrated RF front-end module (FEM) designed for ZigBee, Thread, and Bluetooth (including Low Energy) applications.
The SKY66403-11 is designed for ease of use and maximum flexibility. The device provides an integrated inter-stage matching and harmonic filter, and digital controls compatible with 1.6 V to 3.6 V CMOS levels.
The RF blocks operate over a wide supply voltage range from 1.8 V to 3.6 V that allows the SKY66403-11 to be used in battery powered applications over a wide spectrum of the battery discharge curve.

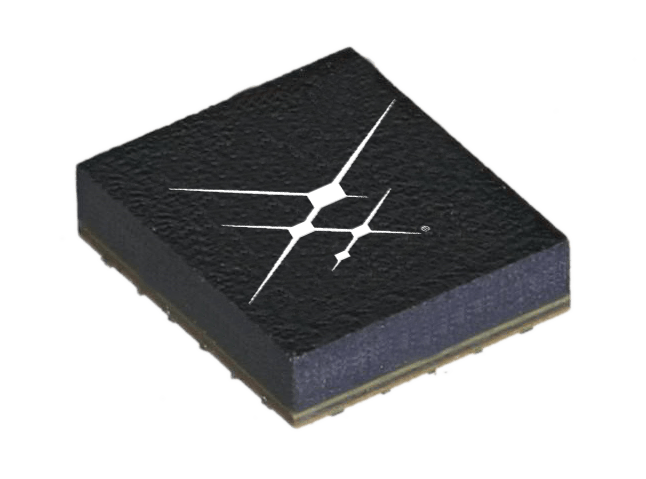

A functional block diagram is shown in Figure 1. The SKY66403-11 is provided in a small, 22-pin, 3.5 mm x 3.0 mm Multi-Chip Module (MCM) package.
The SKY66403-11 FEM has been designed into reference designs with products from Dialog Semiconductor, Nordic Semiconductor, NXP, Texas Instruments and Silicon Labs. Combined with our partners’ platforms, the SKY66403-11 meets today’s demand for long-range, low-power and cost-effective solutions.
|Dialog Semiconductor||Nordic Semiconductor||NXP||Texas Instruments||Silicon Labs|
|DA14681 and DA14683||nRF52, nRF52840||JN5179||CC2650||EFR32, EM358|
- Integrated PA with up to +21 dBm output power
- Integrated LNA (2 dB noise figure typical) and bypass path
- Integrated antenna diversity switching for all modes
- Single-ended transmit/receive interface
- Fast switch on/off time: < 800 ns
- Supply range: 1.8 V to 3.6 V
- Sleep mode current: < 1 μA typical
- No external bias resistor is required
- Small MCM (22-pin, 3.5 mm x 3.0 mm x 1.0 mm) package, NiPdAu-plated (MSL3, 260 °C per JEDEC-J-STD-020)
Images & Diagrams
- RF Frequency (MHz)
- Rx Insertion Loss (dB) Typ.
- Rx Gain (dB) Typ.
- Tx Gain (dB)
- Rx NF (dB) Typ.
- Saturated Output Power (dBm) Typ.
- Supply Voltage (V)
- MCM, 22-pin
- Package (mm)
- 3.5 x 3.0 x 1.0
